Make cutting tubing as easy as cutting through butter with Air-Powered Simond’s tools.
Plastic Tube Cutting Tools
Simonds pneumatic plastic tube cutters feature a clever jaw set up: a cutting blade on one side and a “U” shaped channel on the bottom jaw holds the tubing securely, making consistent cuts safe and easy. Simond’s jaws cut up to 1”diameter tubing and prevent tube distortion during cutting. Available in handheld for maximum mobility or bench-mounted for efficiency for repetitive cutting.
Pneumatic Pinch Off Tools
Copper and Aluminum Tubing, 1/4” - 3/8”
PO-004
Up to 1/4” Tubing Air Pinch Off
Built for copper or aluminum tubing the PO series feature handheld tools that pinch off to a tight seal. Pneumatically driven.
PO-006
Up to 3/8” Tubing Air Pinch Off
Simond’s large-size pinch off tool features a made in the USA body, jaws and housing assembly. It’s the best tool we could make.
Ball Crimp Tools
1/4” tubing: BC-004
3/8” tubing: BC-006
Simond’s Ball Crimp Air Tools are perfect for Aluminum and Copper tubing. These jaws feature a ball and socket, allowing a perfect ball crimp every time. The tool also features the option to lock the jaws on the tubing giving the user time to make a silver solder.
These tools feature Simond’s “Reverse Valve” feature that prevents dangerous misfires as the jaws are closed at rest. When activated by the user, the jaws open; when released the jaws close backdown prevent powerful tool mishaps.
As with most of Simond’s tools, the tool is standard with a hand-lever activation while foot activation is available. See optional gear for more information on accessories.
E Series

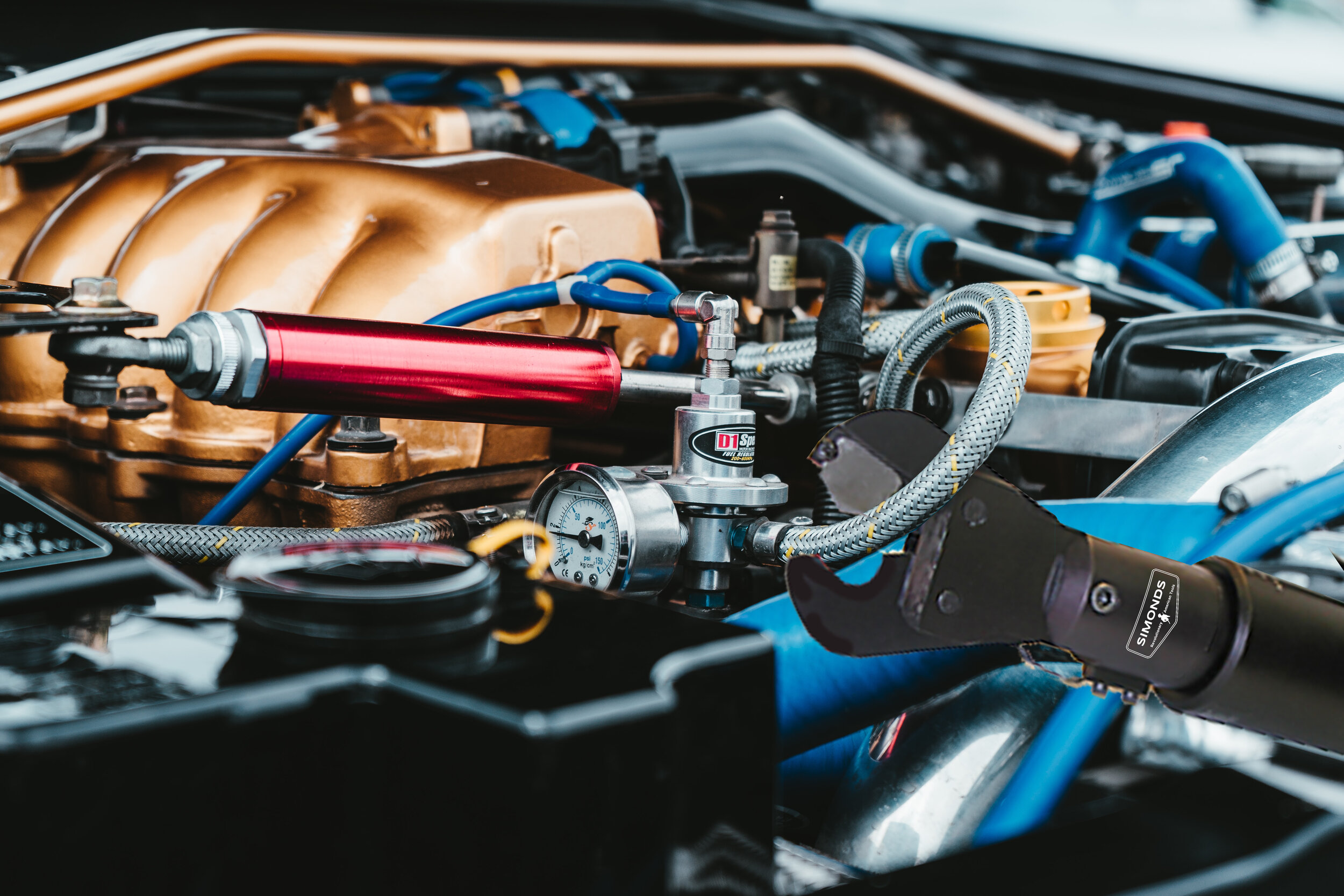

Designed to cut rubber hose and plastic tubing with compressed air. Air tools feature a brass anvil on one side and a cutting jaw on the other for clean cuts.
E-3
E-4
| E Series | ||
|---|---|---|
| Part Number | E-3 | E-4 |
| Housing Length | 4.18" (106.25mm) | 4.18" (106.25mm) |
| Overall Length | 5.9" (149.9mm) | 6.89" (175mm) |
| Weight | 1 lb 6 oz | 1 lb 8 oz |
| Diameter | 1.72" (43.69mm) | 1.72" (43.69mm) |
| Length of Cut | 1.48" (37.5mm) | 2.72" (69.05mm) |
| Maximum Opening | 0.44" (11.18mm) | 1" (25.4mm) |
| Angle | 45° | 25° |
