Air-powered tools made specifically for electronic work.
Pneumatic Cut and Bend Tools
Air Power Pack

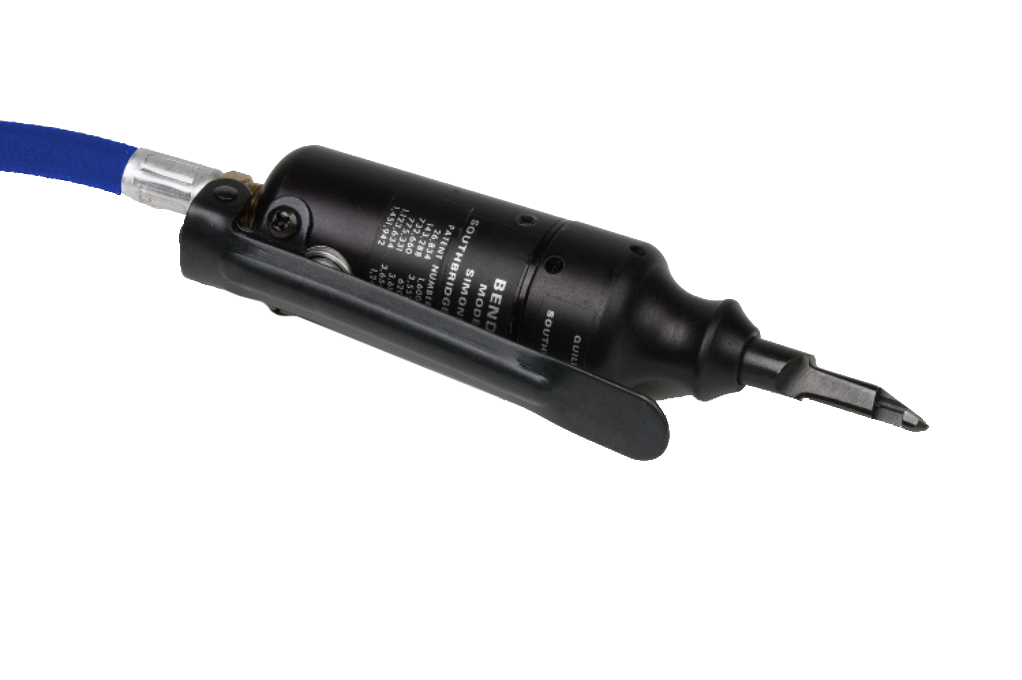

The BP-1 is the heart of Simonds cut and bend tools. Featuring CNC’d aluminum body construction this unit mates with your choice of heads found below. The pack is shown here with a head installed.
| BP-1 Air Power Pack | |
|---|---|
| Length | 5.5" (13.97mm) |
| Weight | 8oz, (0.226 kg) |
| Diameter | 1.25" (31.75mm) |
| Material | Aluminum |
Cut and Bend Heads
Designed for cutting and bending components on PC boards at 1/16” above the surface, making tight bends to the board. Simonds offers 7 interchangeable cut and bend heads for different diameter components with 20°, 30 and 45° angles to make your work easier. Heads are easily interchanged helping boost productivity.
Simonds Cut and Bend heads are made from hardened tool steel. Maximum inlet air pressure is 80psi.
| Cut and Bend Heads | |||
|---|---|---|---|
| Product Number | Wire Size | Work Angle | Duty |
| 4H-20 | 0.010-0.028 | 20° | Light |
| 4H-30 | 0.010-0.028 | 30° | Light |
| 4H-45 | 0.010-0.028 | 45° | Light |
| 4H4-20 | 0.020-0.038 | 20° | Heavy |
| 4H4-30 | 0.020-0.038 | 30° | Heavy |
| 4H4-45 | 0.020-0.038 | 45° | Heavy |
| 4HG-20 | 0.030-0.050 | 20° | Heavy |
Short Layover Cut and Bend Heads
These Cut and Bend heads feature a shorter layover.
| Short Layover Cut and Bend Heads | |||
|---|---|---|---|
| Product Number | Wire Size | Work Angle | Duty |
| 4H4-20-SL | 0.010-0.028 | 20° | Heavy |
| 4H4-30-SL | 0.010-0.028 | 30° | Heavy |
| 4H4-45-SL | 0.010-0.028 | 45° | Heavy |
| 4HG-20-AR | 0.030-0.050 | 20° | Heavy |
See Simonds Pneumatic Cut and Bend tools in action
Here you can see how easy a Simonds pneumatic tool can make difficult or time consuming operation.
