Pneumatic tools to make the job easier.
With Simonds pneumatic tools to install snap rings, hose clamps or e-style clamps, the job can actually be easier, faster and greatly reduce the risk of repetitive injury.
Grab the PDF.
Simonds builds remarkably simple pneumatic tools that handles repetitive jobs like installing, removing or adjusting hose clamps, snap rings, e-style clamps and more. Get the whole picture in a shareable PDF right here.
Snap Rings
Internal Snap Rings
Simonds offers off-the-shelf tools for internal snap rings that meet these critical data points:

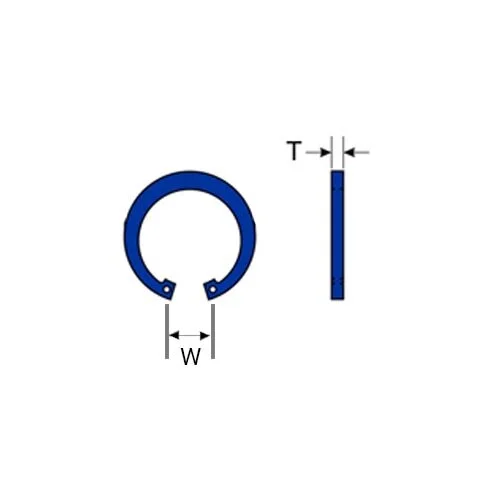

3/32” snap ring eye hole minimum diameter
Have a maximum opening of 1.4” or less (W in the drawing)
Have an overall thickness of less than 1/8” (T in the drawing)
Easy.
Simonds pneumatic snap ring tools make quick work of frustrating c-rings, circlips and retaining rings. Jaw options give you 45° or 90° angle options to make the job even easier. Available with hand controls as seen here or with optional foot operational control and bench mounts.
Configurations: Complete tools with replaceable/repairable jaws.
Check out the video to see this tool in operation.
| Snap Ring SR-100 Tool Options | |||
|---|---|---|---|
| Jaw Set Part Number | SR-1 | SR-1-45 | SR-1-90 |
| Angle | 0° Straight (as shown in photo) |
45° | 90° |
| Max Opening | 1.5" Center to center | 1.5" Center to center | 1.5" Center to center |
| Closed Dimension | 9/32" | 9/32" | 9/32" |
| Max Snap Ring Thickness | 1/8" | 1/8" | 1/8" |
Have an external snap ring or a snap ring outside our off-the-shelf guidelines? No problem, we can produce snap ring tip jaws to meet your need. Hit the below button and tell us about your snap ring and we’ll provide a quote.
Single/Double Wire Rings, Hose Clamp Tools
Simple.
Easy and quick to load, these pneumatic hand tools are perfect for quick and easy single wire ring installation. We’ve designed these tools to combat clamp twisting and as a result, you get an easy and fast way to install these clamps without the hand pains of manual tools. Built to power workers installing these clamps job after job.
| Hose Clamp Tool Options | ||||
|---|---|---|---|---|

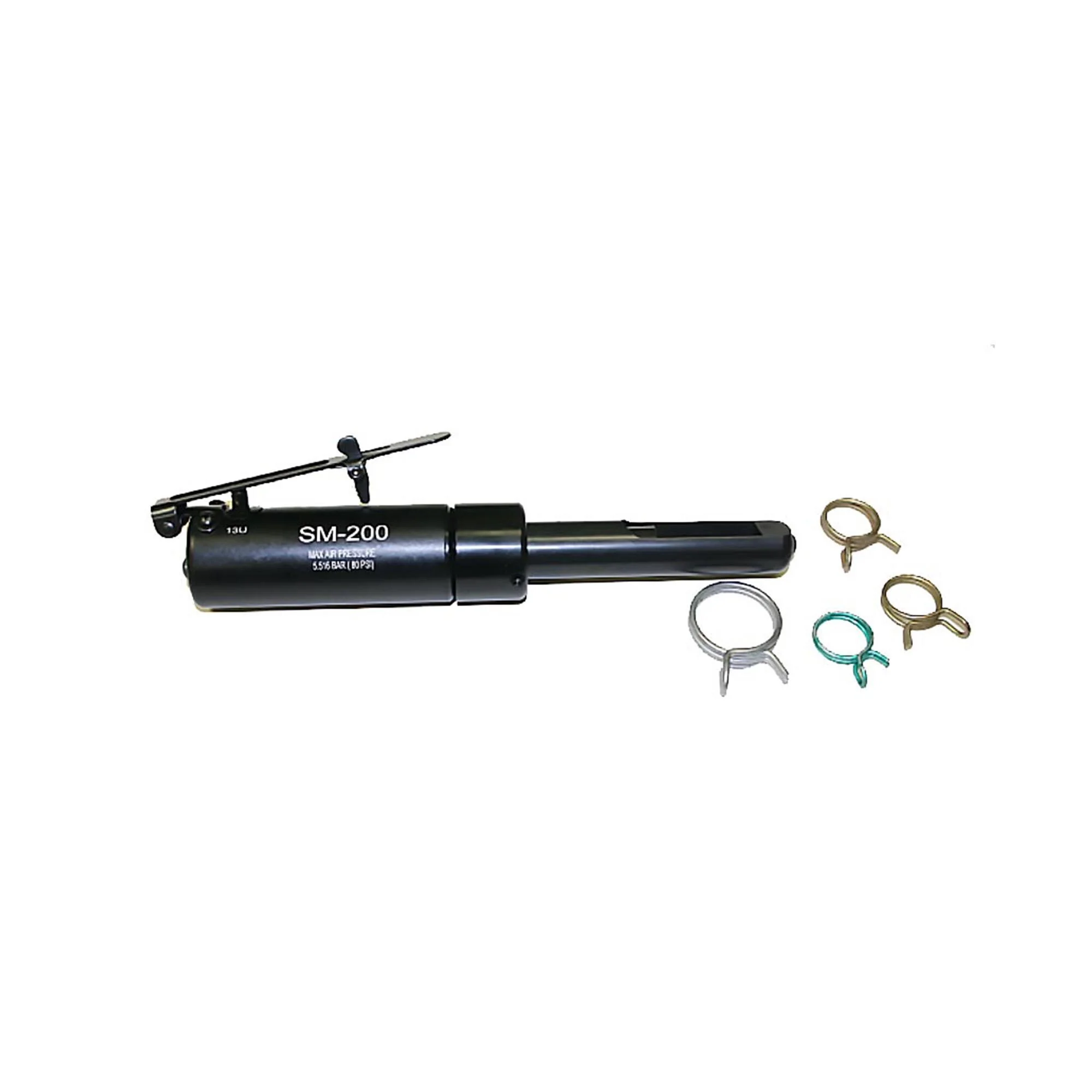

| Model | SM-200 | SM-300 | SM-310 | SM-350 |
| Design Intent | Designed for smaller automotive clamps | Designed for double wire clamps | Reverse version of SM-300 | designed for single wire clamps |
| Max Opening | 1.5” long X 5/8” wide | 0” to 2.44”max | 0”- 2.68”max | 0”- 2.68”max |
| Ready State | Closed | Closed | Open | Closed |
| Material | All metal | All metal | All metal | All metal |
| Adustable Stroke? | No | Yes | Yes | Yes |
Pneumatic double wire hose clamp tools:
PWD-7.5 -
PWD-10.5 -For RotorClip DW-10.5
PWD-12 - for RotorClip DW-12
PWD-16 for RotorClip DW-16
PWD-32 for RotorClip DW-32

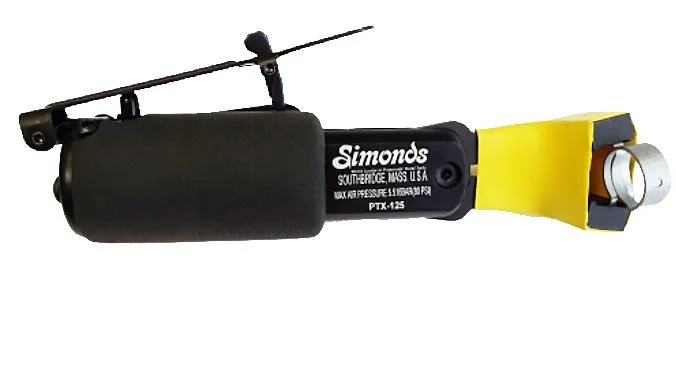

Band Style Hose Clamp Tools
1/4” to 3” (Depending on tabs)

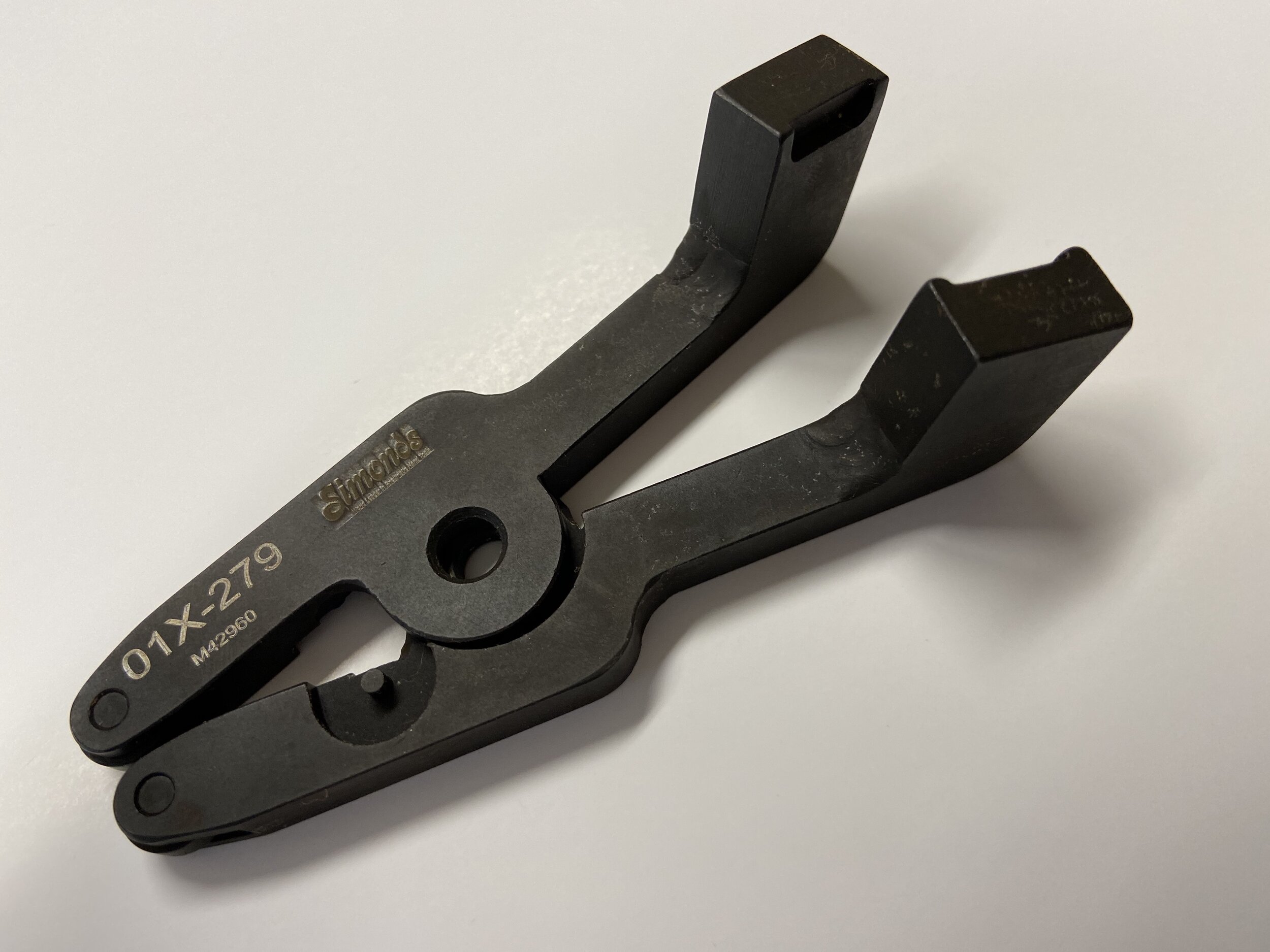

01X-279 Jaw Set
Quick.
Simond’s hose clamp tools handle a wide range (1/4” to up to 3” depending on tabs) allowing quick repetitive work installing hose clamps common in the automotive, RV, appliance, marine and HVAC industries. These tools are small and lightweight offering maximum maneuverability alongside Simonds legendary quality and consistency allowing your workers to be more productive, with less downtime and less fear of repetitive injury.
Variations:
Different jaws provide the ability for different clamp types.
E-Clips
Designed for E-clip installation the Simond’s pneumatic hand tool is lightweight, highly maneuverable and a simple solution.
